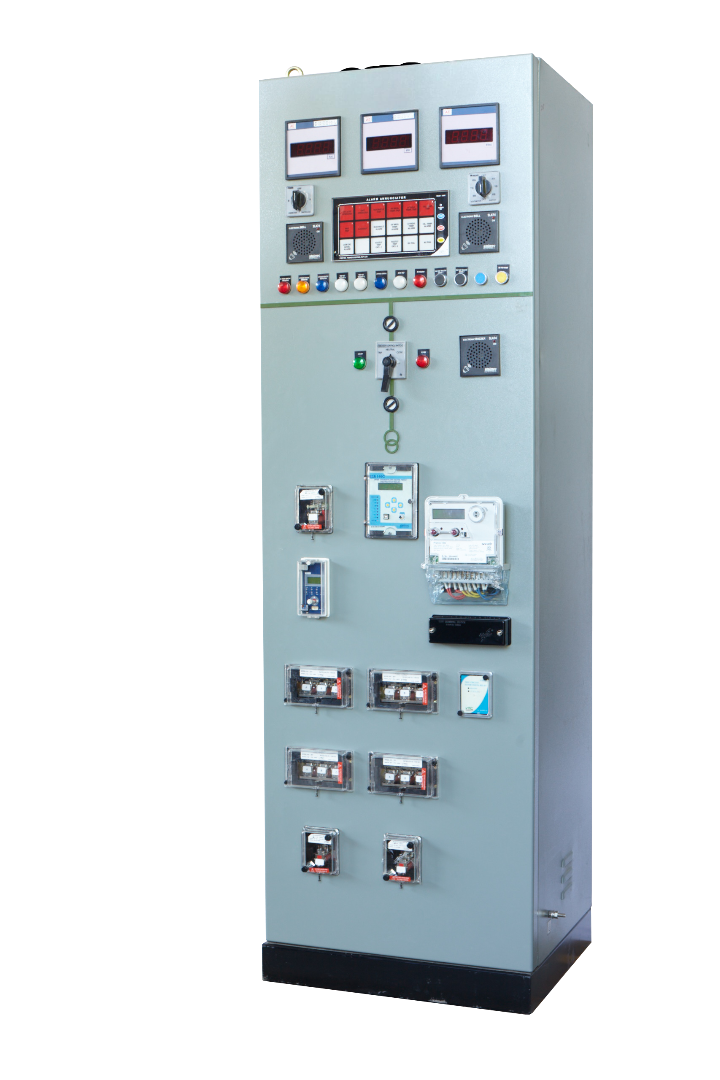

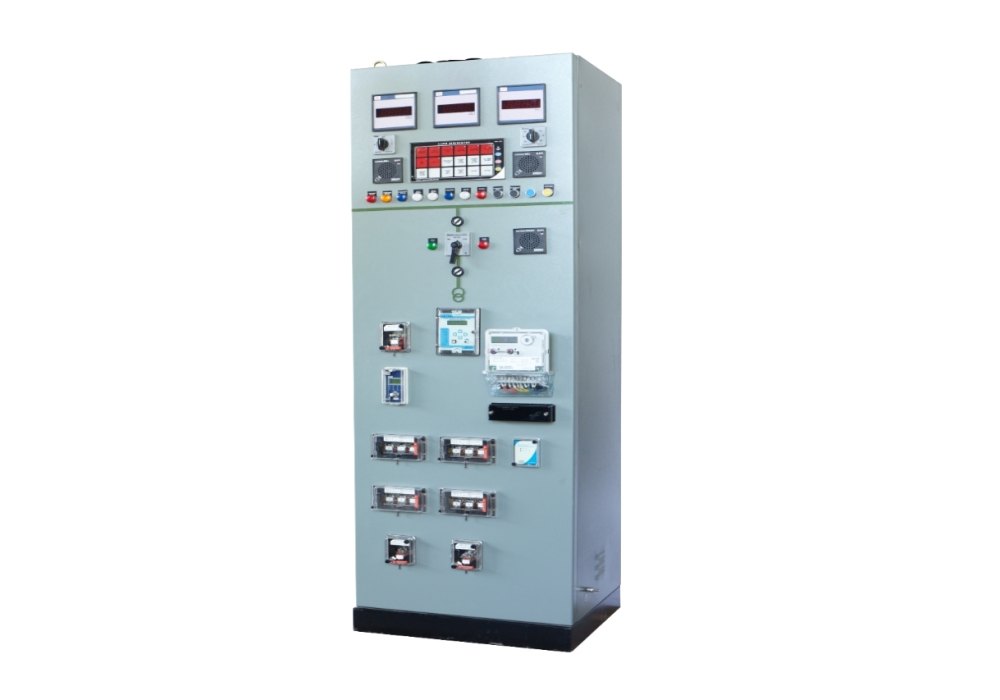

Sky Power offers Control & Relay Protection Panels suitable for various Substation requirements:
Sleek & Excellent Aesthetics
Slanted Mounting of Control Terminal Blocks for Ease of Cable/Wire Terminations
Perfect Compartmentalized Construction
Panels Made from High-Quality CRCA Sheet Metal
Each Front Door Provided with a Pocket to House Relevant Drawings
Special Profile Gasket Used for Dust Protection
Control Cable Entry Either from Bottom or Side/Top
Degree of Protection: IP55
Powder Coated with Suitable Paint Shade
| Sr. No | Description | Parameters |
|---|---|---|
| 1 | Type | Indoor / Outdoor |
| 2 | Model No. | SCRP-12 / SCRP-24 / SCRP-36 |
| 3 | Control Voltage | 24 / 30 / 110 / 220 VDC |
| 4 | Dimensions (W × D × H) | As Per Customer Requirement |
| 5 | Reference Standard | As Per IEC 61439 / IS 8623-6 |
| 6 | Panel Finish | Powder Coated / Spray Painting |
| 7 | Degree of Protection | Indoor: IP 54 / Outdoor: IP 55 |
| 8 | Metering | Energy Meter / Ammeter / Voltmeter (As Required) |
| 9 | Protection | Overcurrent & Earth Fault Relay, Trip Relay & Differential Relay (If Required) |
| 10 | Other Accessories | Includes Thermostat, Space Heater, LED Lamp, Push Button, Breaker Control Switch, Semaphore & Mimic |
